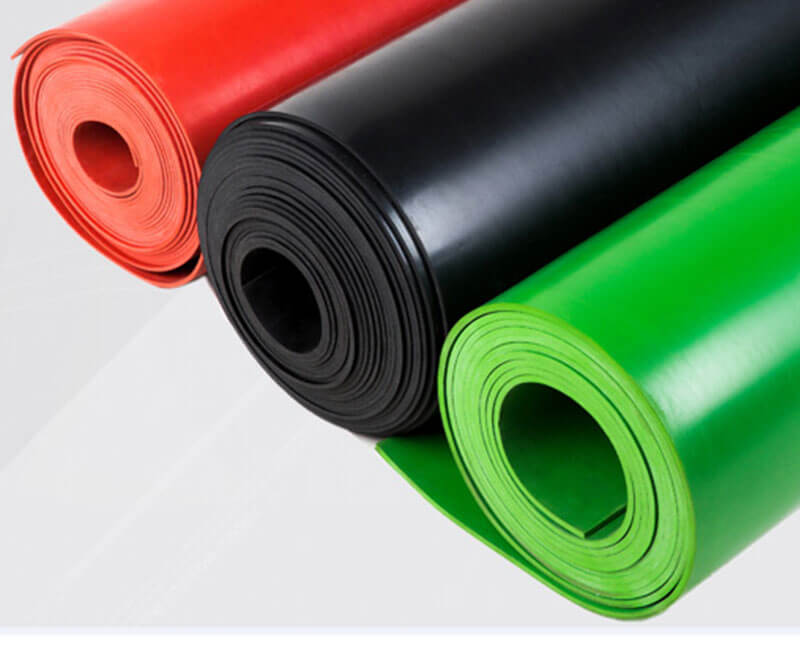

Insulation Rubber sheet can be used in any type of industry where there is a electric shop and safety of technicians in danger. Electrical Rubber Insulation Mats are divided in to different classes depending upon Voltage Ratings. The different classes varies in terms of Thickness of Mats, Voltage Grade, Proof Voltage & their break down voltage.Electrical Insulating Mat for electrical purpose has different used in various applications like as power plants, high voltage panels, substation, HT and LT Labs and power transmission room.
Working/Operating Platform, General Use
| Density | 1.05g/cm3 | 1.4g/cm3 | 1.5g/cm3 |
| Tensile Strength | 18mpa | 5mpa | 3mpa |
| Elongation | 600% | 300% | 200% |
| Hardness | 65 Shore A | 65 Shore A | 40 Shore A |
| Temperature Range | -20℃ to 90℃ | -20℃ to 90℃ | -20℃ to 90℃ |
| Size | Thickness | Width | Length |
| 1m-2m | 1m-2m | 10m/15m/20m | |
| 12-30mm | 1m-2m | 5m/3m | |
| Surface | Smooth, Black or other colors | ||

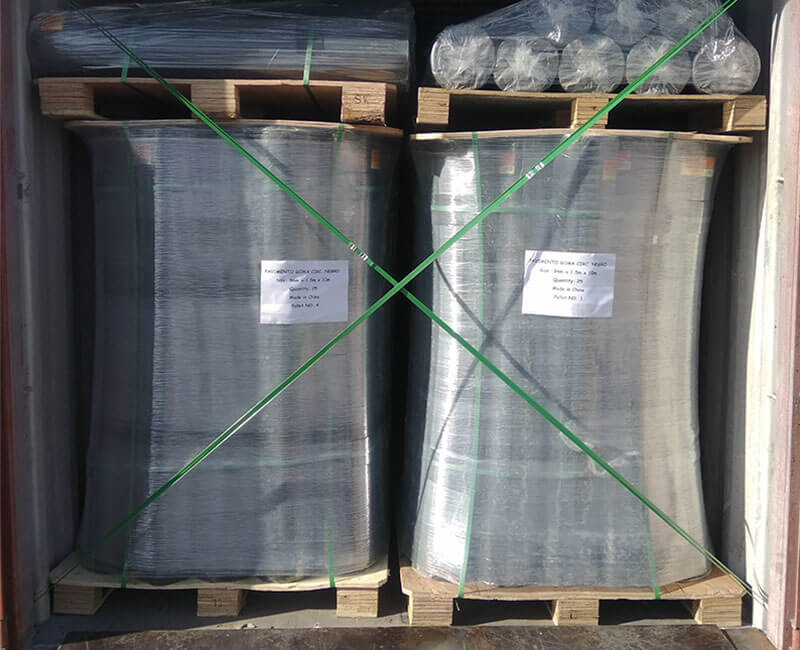

Polythene Bag / Woven Bag, loaded onto Non-fumigation Pallets or European Standard Pallet
